Token Selection

Cmd/Ctrl+Click on any token (function name, variable, parameter, type) to select it. Code Canvas queries the Language Server Protocol (LSP) for that token's definition, references, implementations, and call hierarchy, then draws colored overlays and edges connecting all locations across your files.

Token selection requires the same VS Code language extensions that enable go-to-definition: the built-in TypeScript extension for JavaScript/TypeScript, Pylance for Python, the C# extension for .NET, etc.

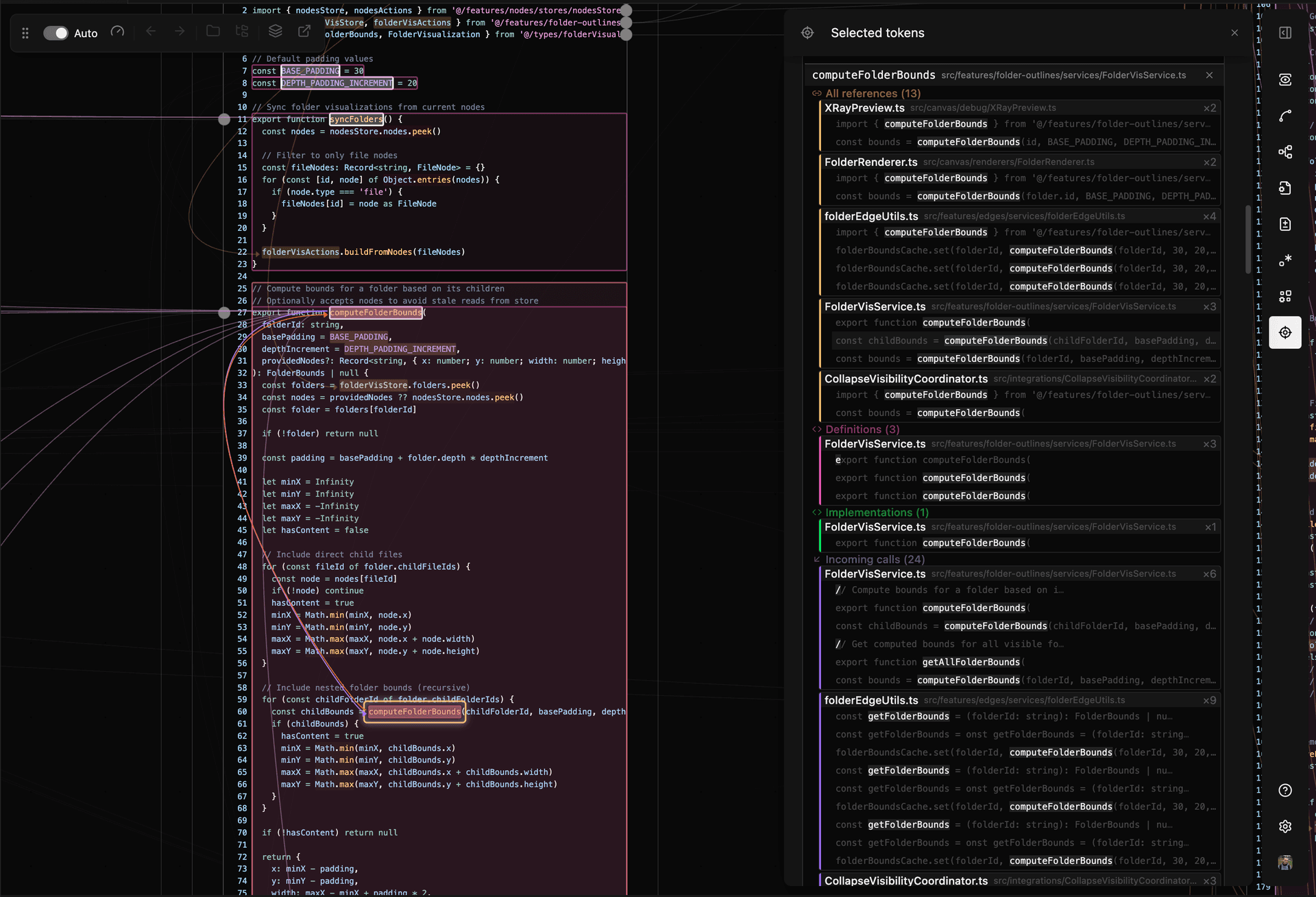

Press T to open the Token Panel. It lists all references grouped by type. Clicking a reference opens its file. Hovering highlights that reference on the canvas.

The LSP returns multiple ranges for each reference type:

Definition

• Definition Origin — The name token
• Definition Selection — The declaration line including type annotations
• Definition Range — The full body

Incoming Calls

• Call In — The call site token
• Caller Selection — The calling function's declaration
• Caller Range — The calling function's body

Outgoing Calls

• Call Out — The call site token
• Callee Selection — The called function's declaration
• Callee Range — The called function's body

Implementation — The implementation location

References — All other occurrences

Default edges connect:

• The selected token to its definition (origin, selection, range), implementation, incoming calls, and references
• Outgoing call tokens within the function body to their callee selections

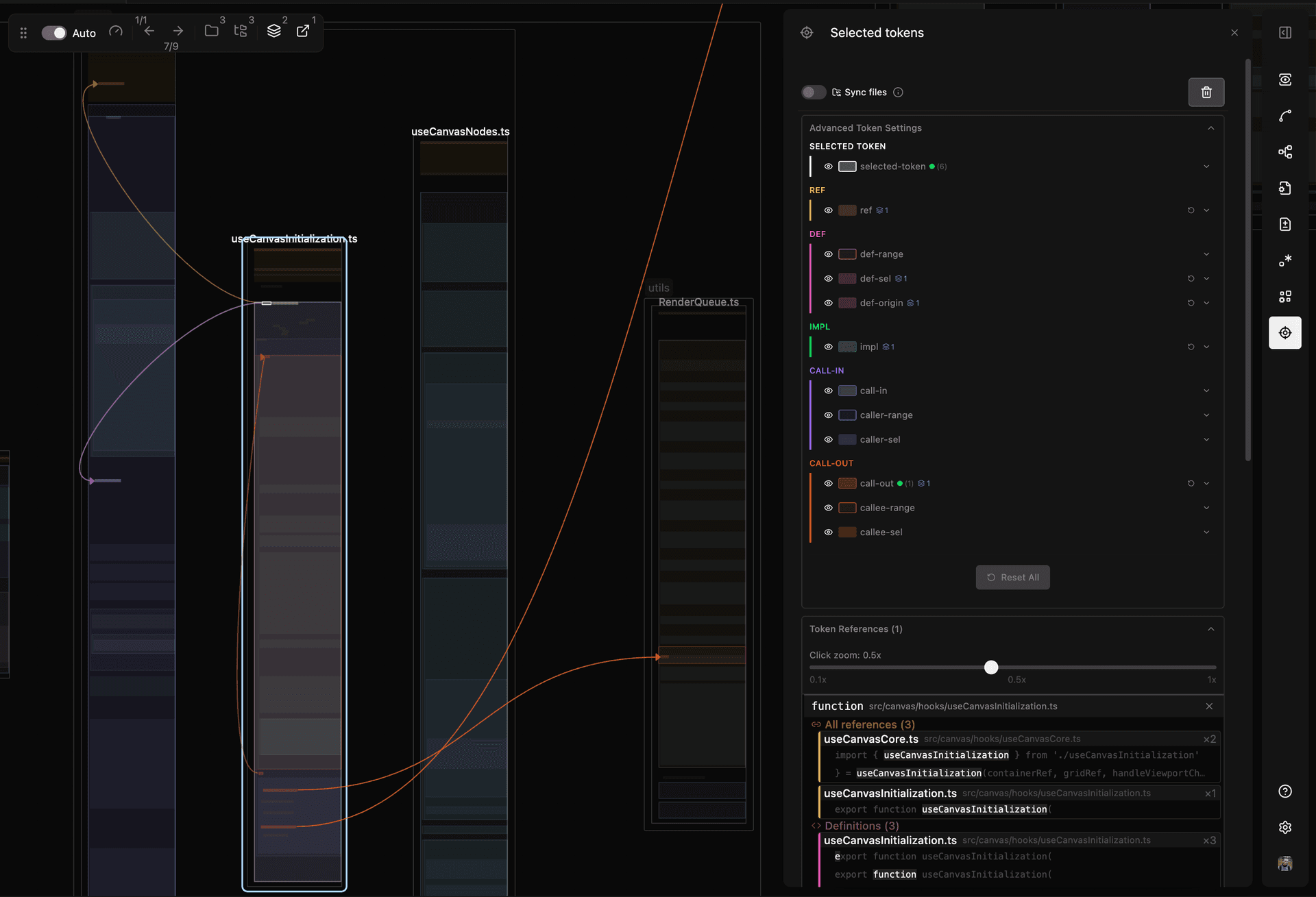

Custom Connections

To add a connection between token types:

1. Open the Token Settings panel
2. Expand the dropdown for the source token type
3. Click Add Connection
4. Select the target reference type

In the panel, green dots mark connections; blue icons mark style variants.

Each token type and its edges accept:

• Border color
• Fill color
• Opacity
• Border width

Style Variants

Style variants apply conditional styling to subsets of tokens or edges.

Built-in examples:

External outgoing calls — Calls to functions outside your repository (node_modules, standard library methods like Array.push()) render at 5% opacity.

Edge sides — Outgoing call edges connect on the left for same-file targets, on the right for other files. This matches the default left-to-right layout where imports appear rightward.

Edit these in the Advanced Token Settings panel.

When enabled, selecting a token closes files without references to it and opens files that contain references. Hold Shift while selecting to accumulate files instead of replacing.

Limits

• 20 file maximum — File Sync opens at most 20 files per selection. A warning appears if more files exist, with an option to open all
• Ignore list — Tokens like div or const can be added to an ignore list. Their references still display, but File Sync won't auto-open files for them
• Always open all — Bypasses the 20 file limit
